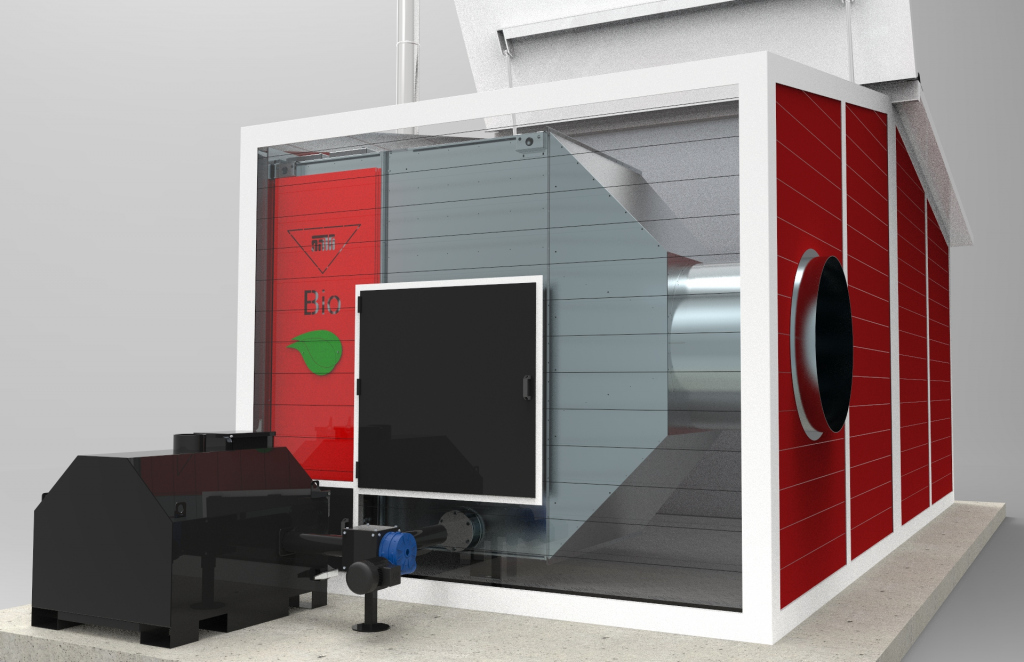

Veto Cont 800 Grain

Veto Cont 800 Grain

kuivurilämpökeskus

Structure

  • Base measurements 3,5m x 7,6 m
    • Weight ca. 12 000 kg
    • Panels RR21 grey; frame, doors and roof structures black
    • Available left or right handed

Technology

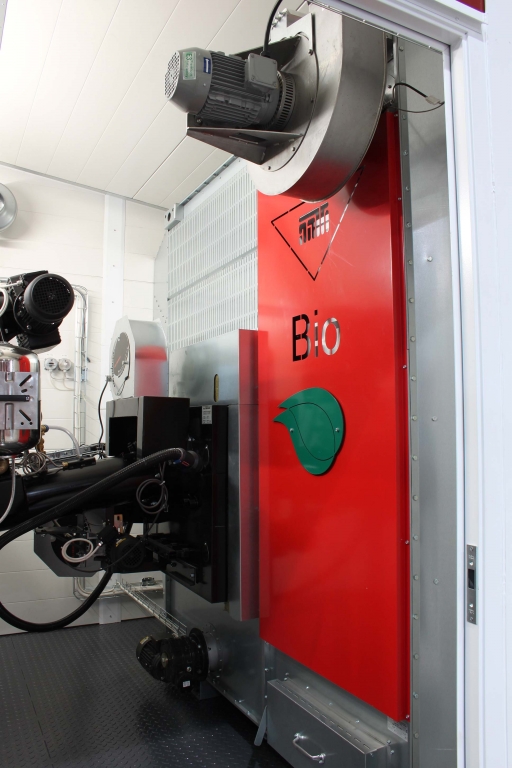

  • Antti BIO 800 negatively pressurized heater
    • Flue gas fan + 2 m stainless steel chimney

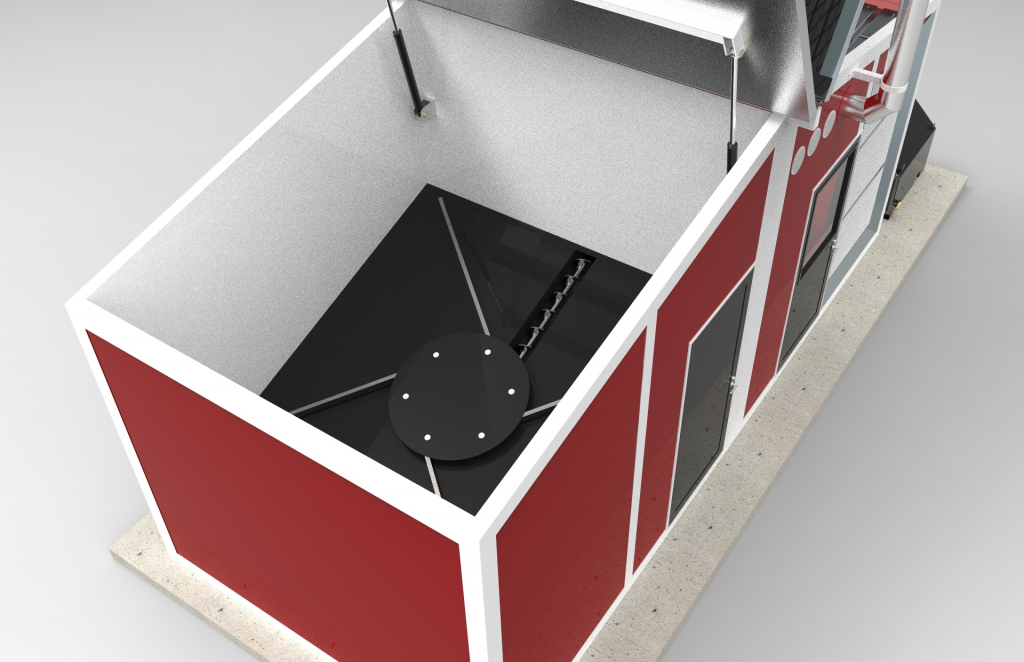

    • Spring Agitator/ fuel storage, silos volume 21 m3

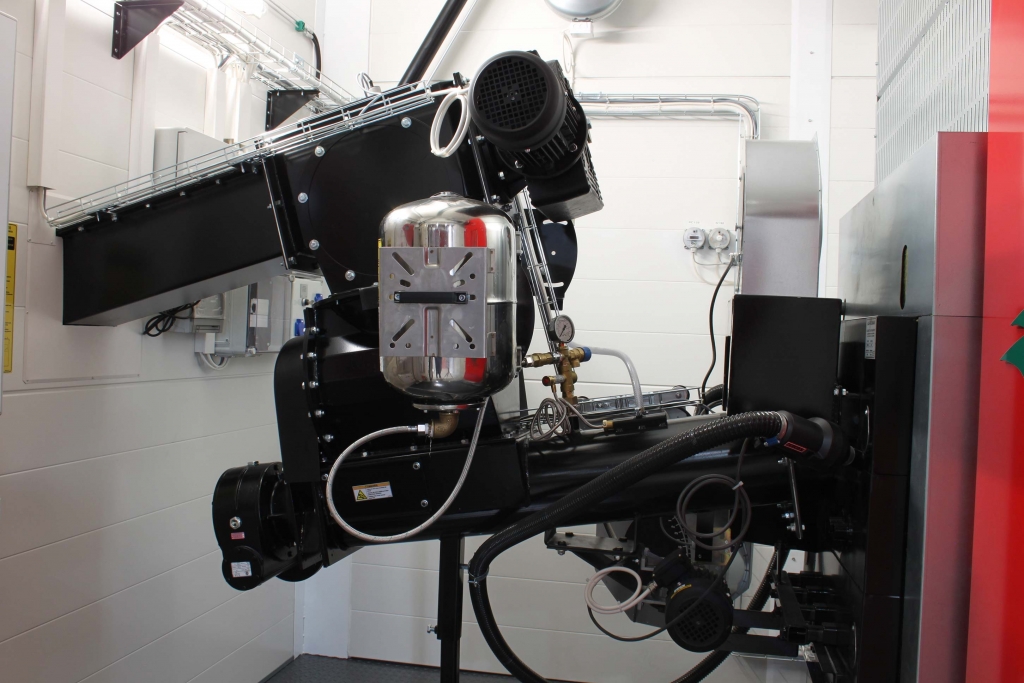

    • Moving grate 800 kW burner with primary and secondary fan
    • Rotary feeder and pressurized independently operating water extinguishing system
    • Electronic thermal detector for burner’s auger

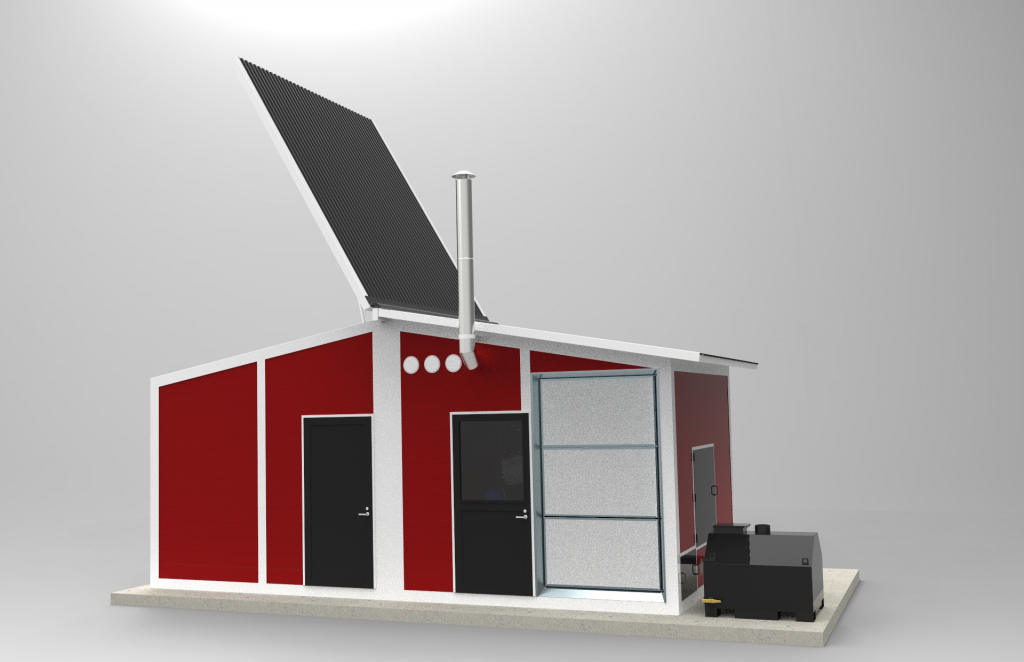

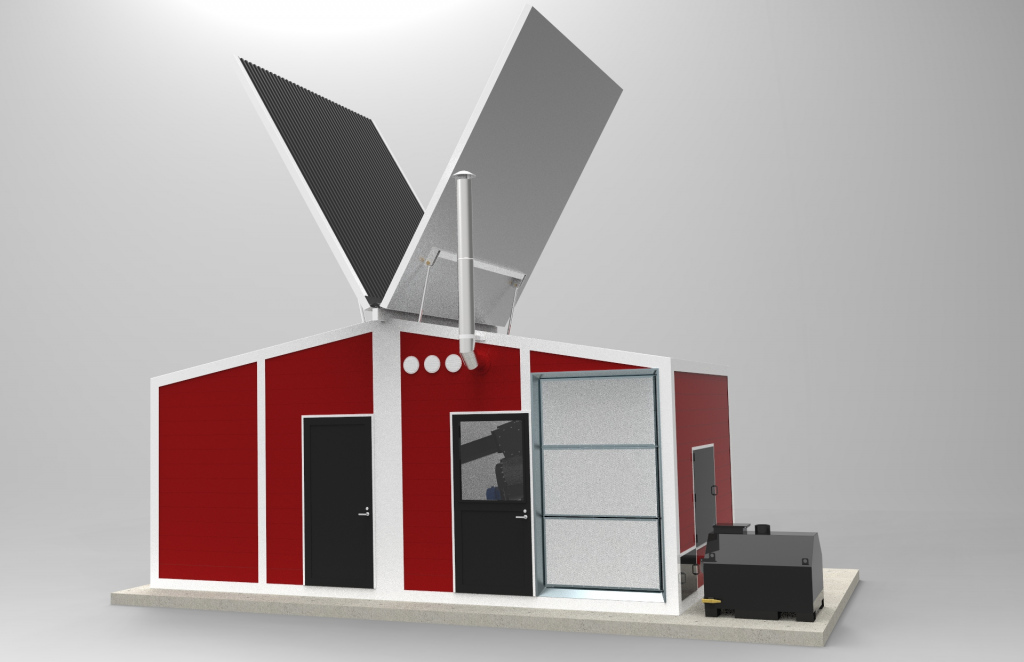

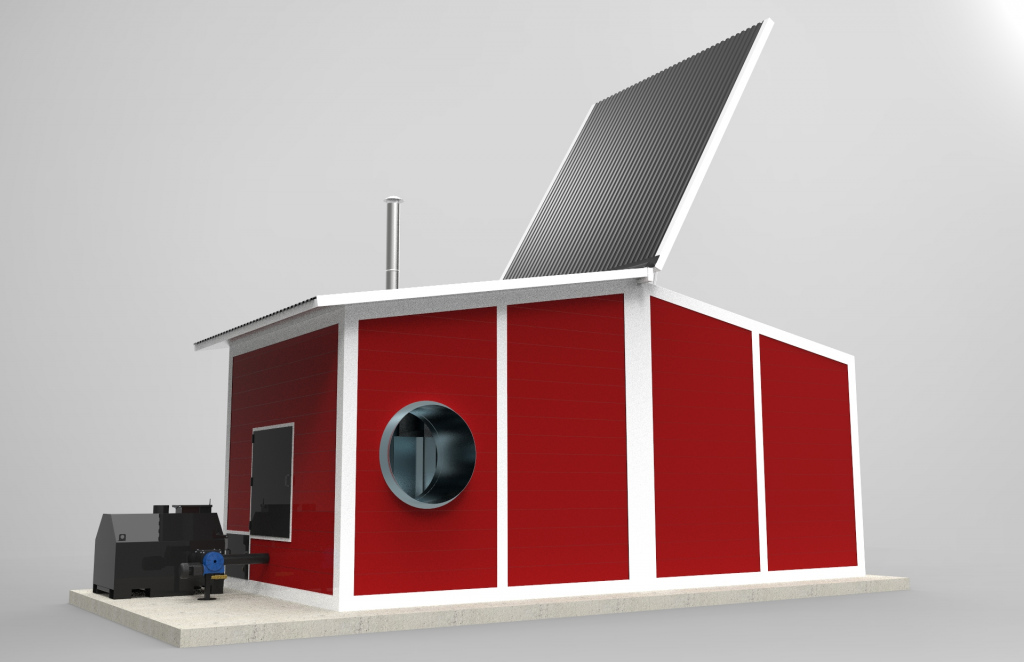

    • Hydraulically operated roof

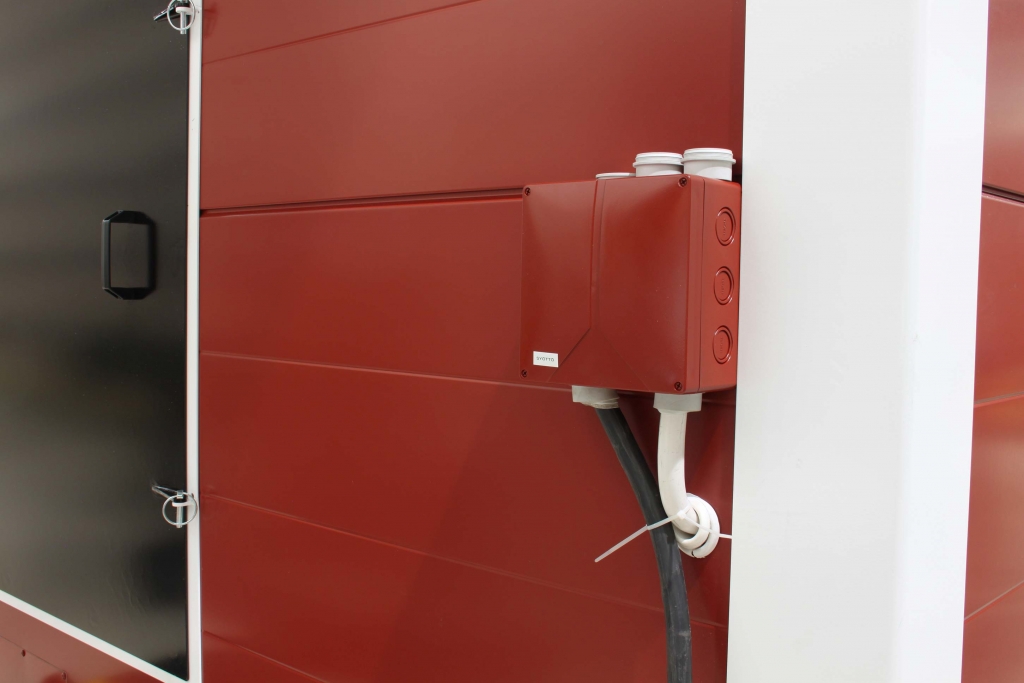

    • Power plug for a 32A wall socket and a connector for drying data

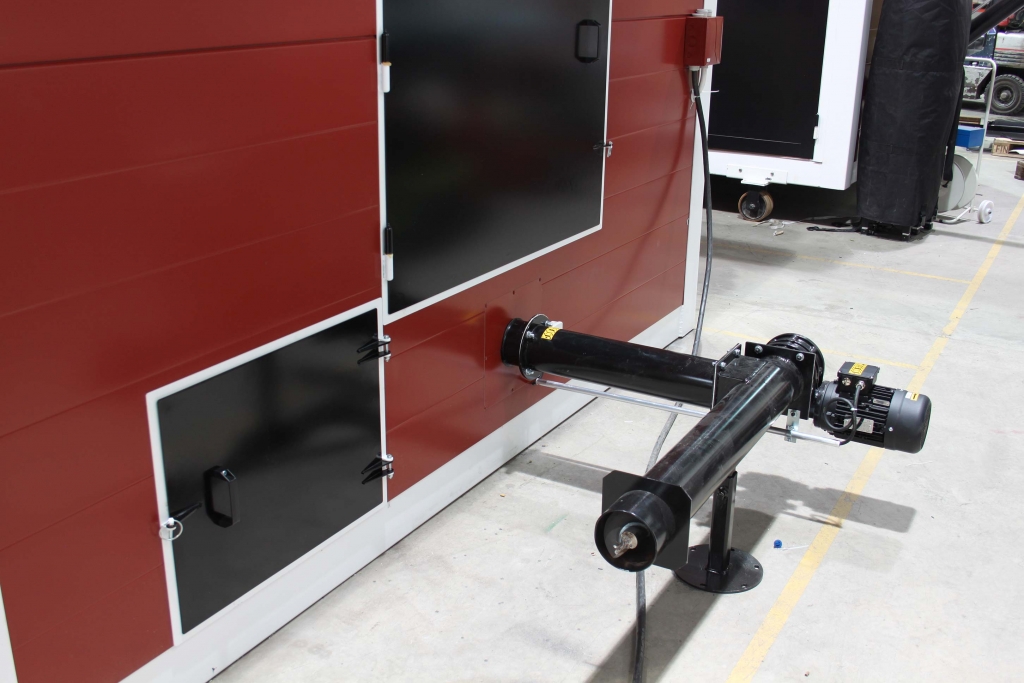

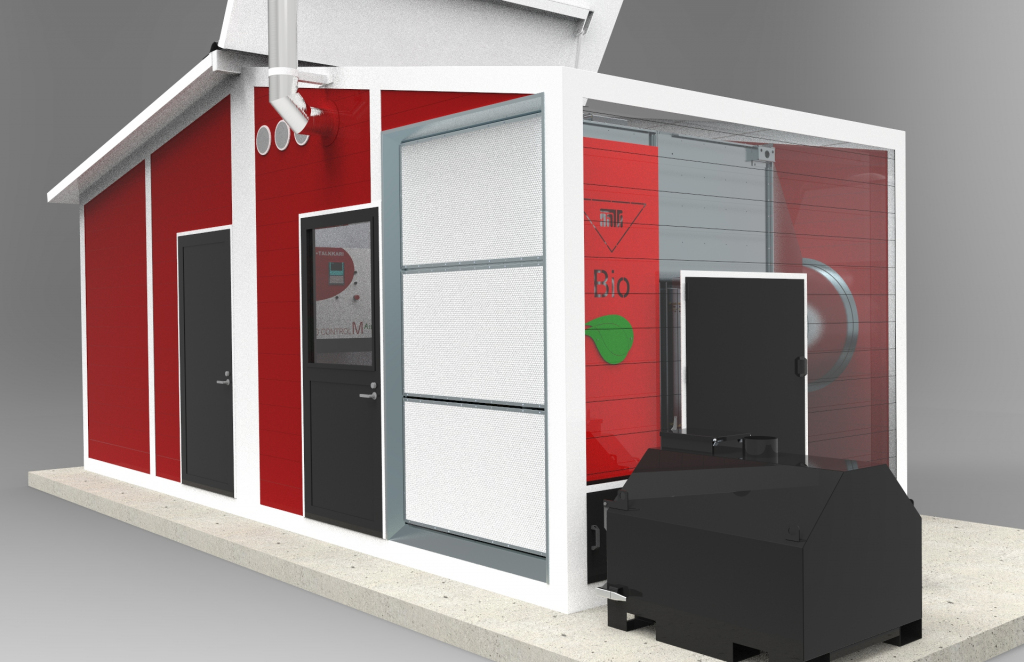

    • Two-pieced ash screw with 800l ash box
    Right handed: boiler on the right side

Classifications

  • Boiler room EI 60, silo EI 30
    • Veto Cont can be located in the immediate proximity of the dryer
    • Veto Cont fulfills government regulations and the high standards of insurance companies in Finland
    • Ala-Talkkari provides technical drawings for the Cont
    • Solutions to justify the fire classifications are presented in the drawings to ease possible inspections
    • Building process follows steel structure standard EN 1090

Usage

  • Plug & Play –setup
    • Veto Cont is tested out and pre adjusted in the factory
    • Cont is ready to use after assembling chimney and power is plugged on
    • Volume of the silo operating on woodchips is enough for a single drying session of approximately 24 hours

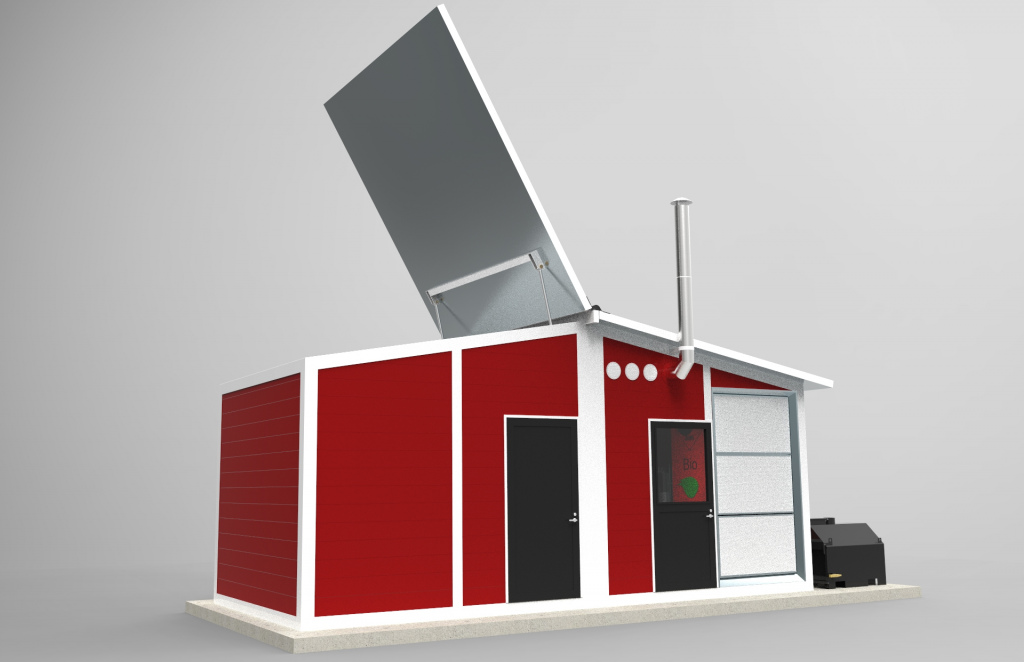

    • Roof opens almost straight up therefore fulfilling fuel from the side is possible.
    • Veto Control M AIR has 100% modulation (energy demand driven control of feed), which leads to stable grain drying air temperatures

Accessories for the control:

  1. Automatic ignition (Starts heating automatically)
  2. Tosibox (Remote control)
  3. GSM-alarm

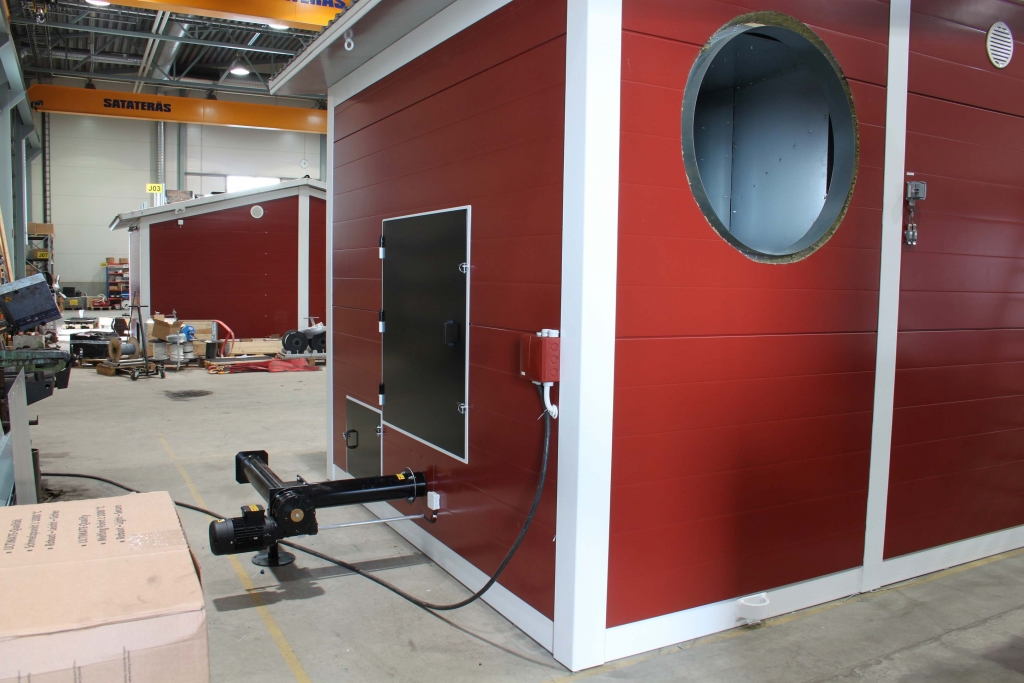

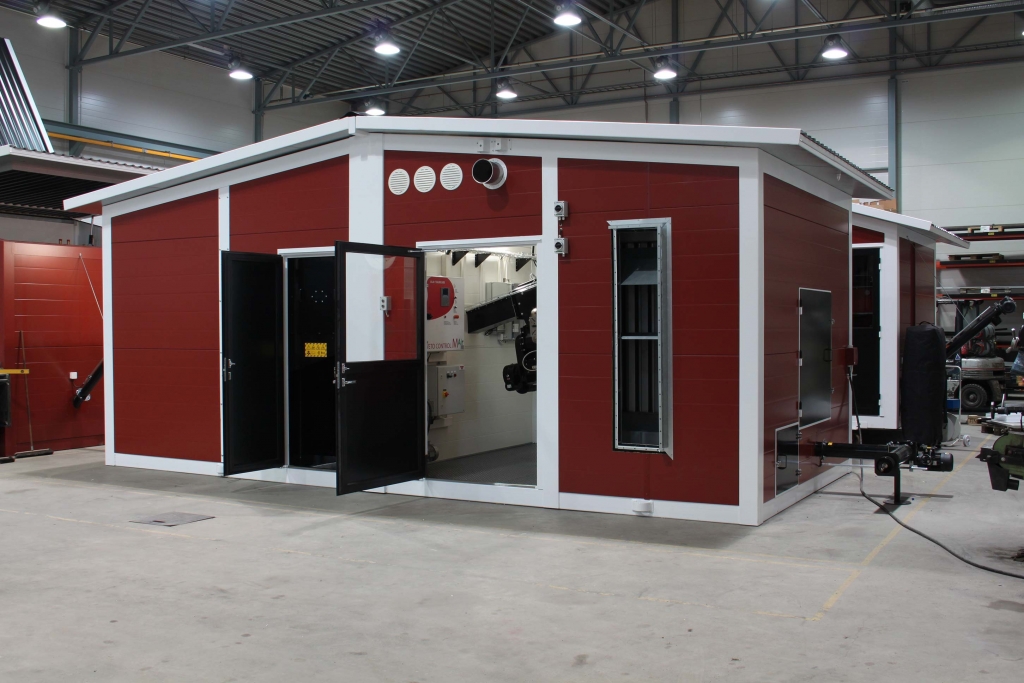

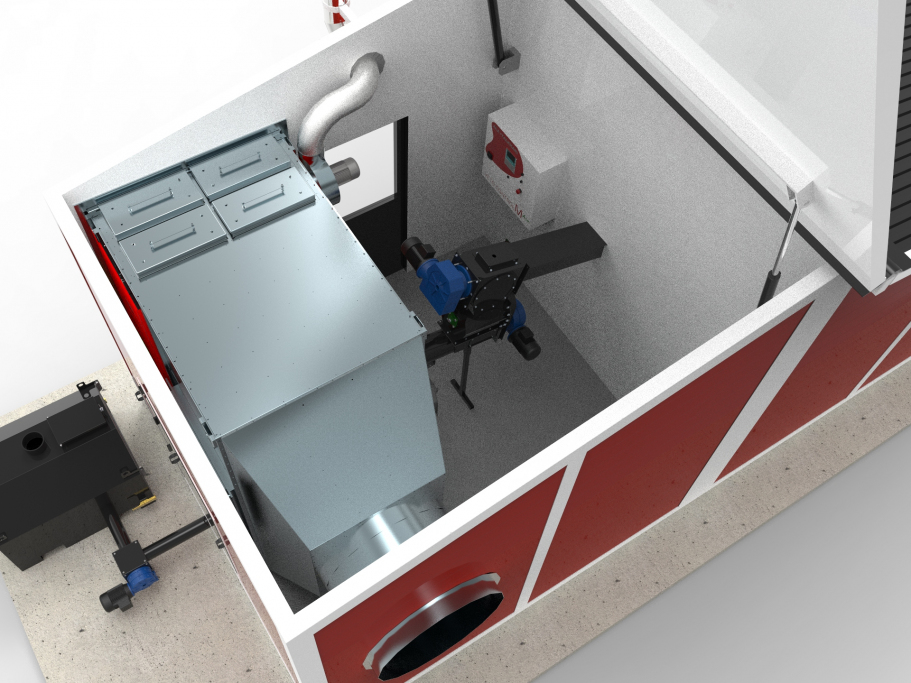

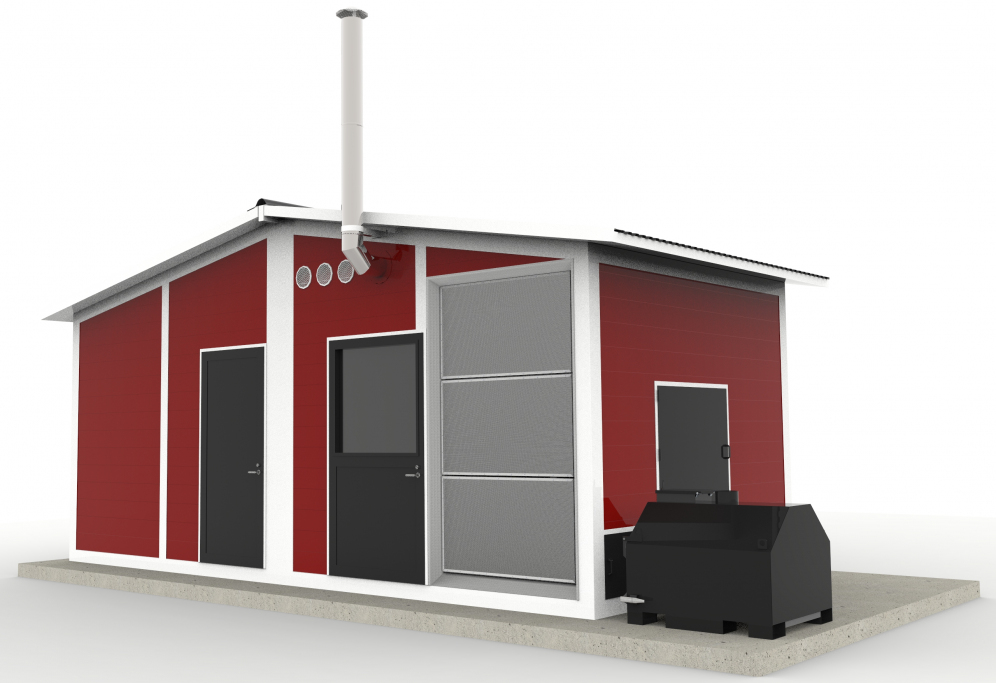

More images of Veto Cont 800
