Veto 300

Biomass boiler, Veto 300 kW

heating boiler (Veto)

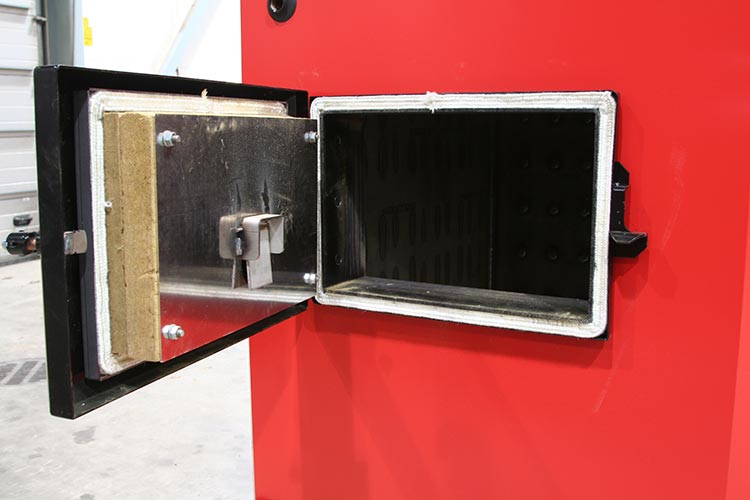

Ala-Talkkari’s biomass boiler, Veto 300 (heating boiler) is mainly intended for heating, for example, farms, greenhouses, larger premises and district heating plants. The new red-black appearance ensures that this boiler is pleasing to the eye. The boiler is fitted with its own spacious ash base, with several easy-to-use maintenance hatches. The orientation of the boiler can be chosen by the customer (e.g. the burner head on the left, on the right or at the front). The boiler’s convection section is tube-shaped. The tube-shaped structure enables the heat collection area to be large. Due to its user-friendliness and adaptability, the Veto 300 biomass boiler is a secure and domestic choice.

Technical information:

Length, external dimension: 2380 mm

Width, external dimension: 1100 mm

Height, external dimension: 2200 mm

Width, flue gas conduit: 400 mm

Height, flue gas conduit: 200 mm

Flue gas conduit height from the floor (to the middle of the conduit): 180 mm

Domestic water coil: –

Heating circuit outputs: 1 x DN65 + 2 x 2”

Mixing valve: –

Electric resistance connector: –

Nominal capacity: 300 kW

Weight: 2300 kg

Water container: 1300 l

Accessories:

Pneumatic cleaner,

Ash screw,

Rear circuit ash screws,

Flue gas cleaner

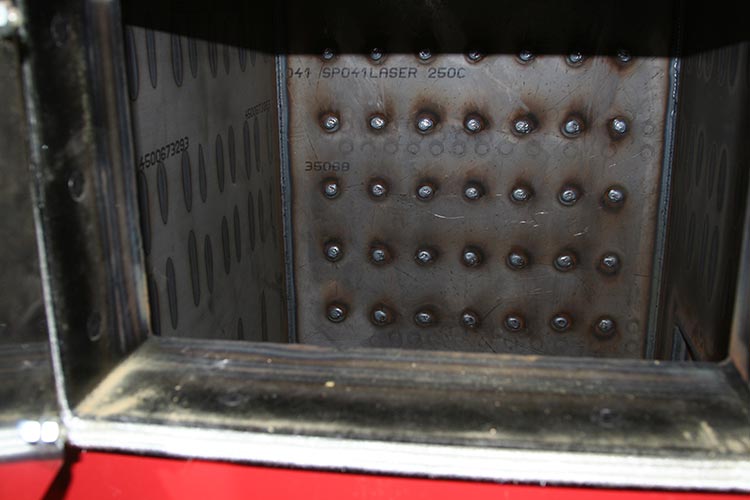

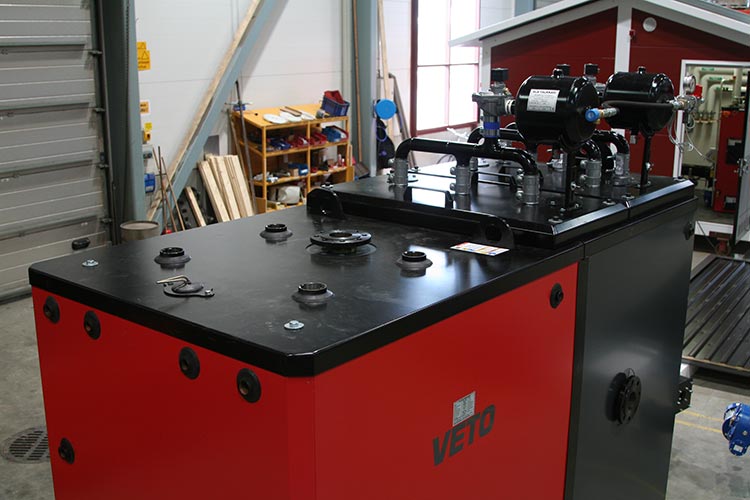

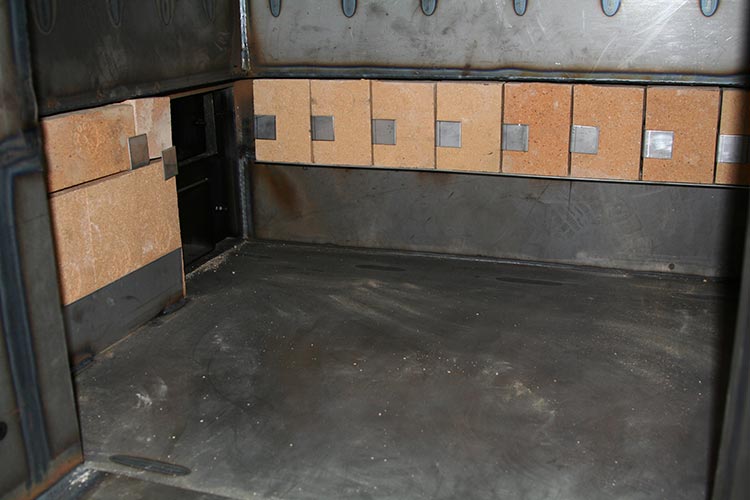

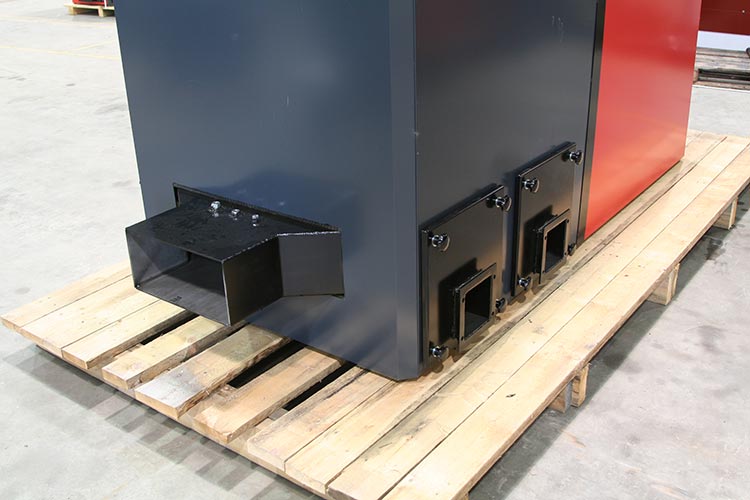

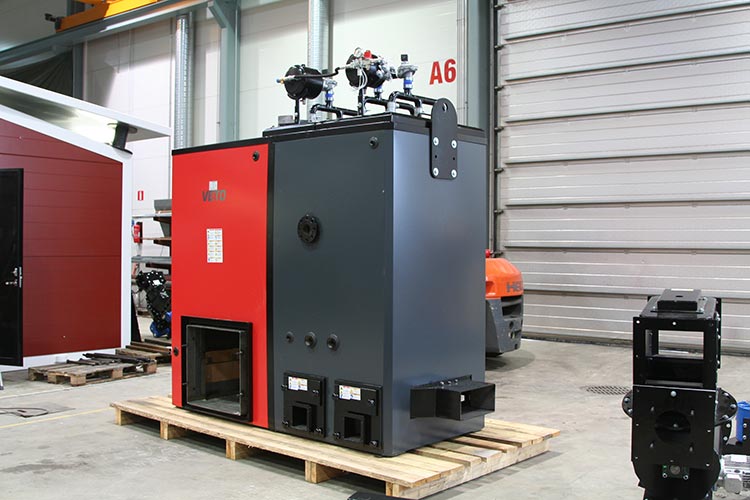

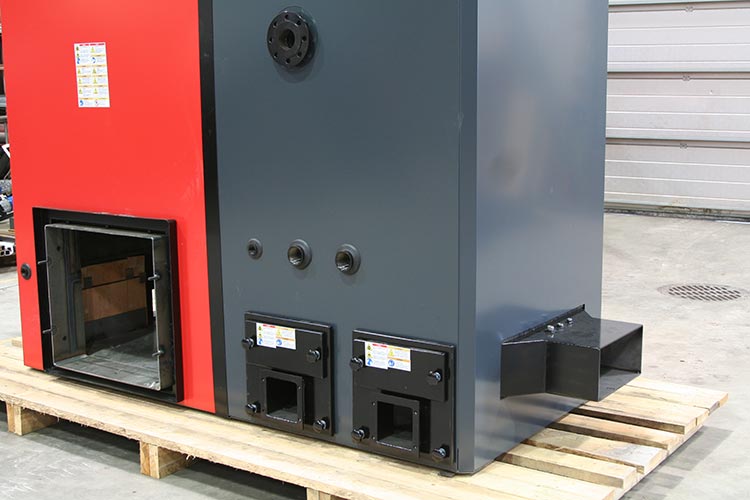

Ima­ges of the Veto 300 biomass boiler:

PDF dimensional drawings of the Veto 300 biomass boiler:

The Veto 300, input on the left, maintenance at the front

The Veto 300, input at the front, maintenance on the left
